ATV 24

Brush Skid (Shown Below)

Med Skid (shown below)

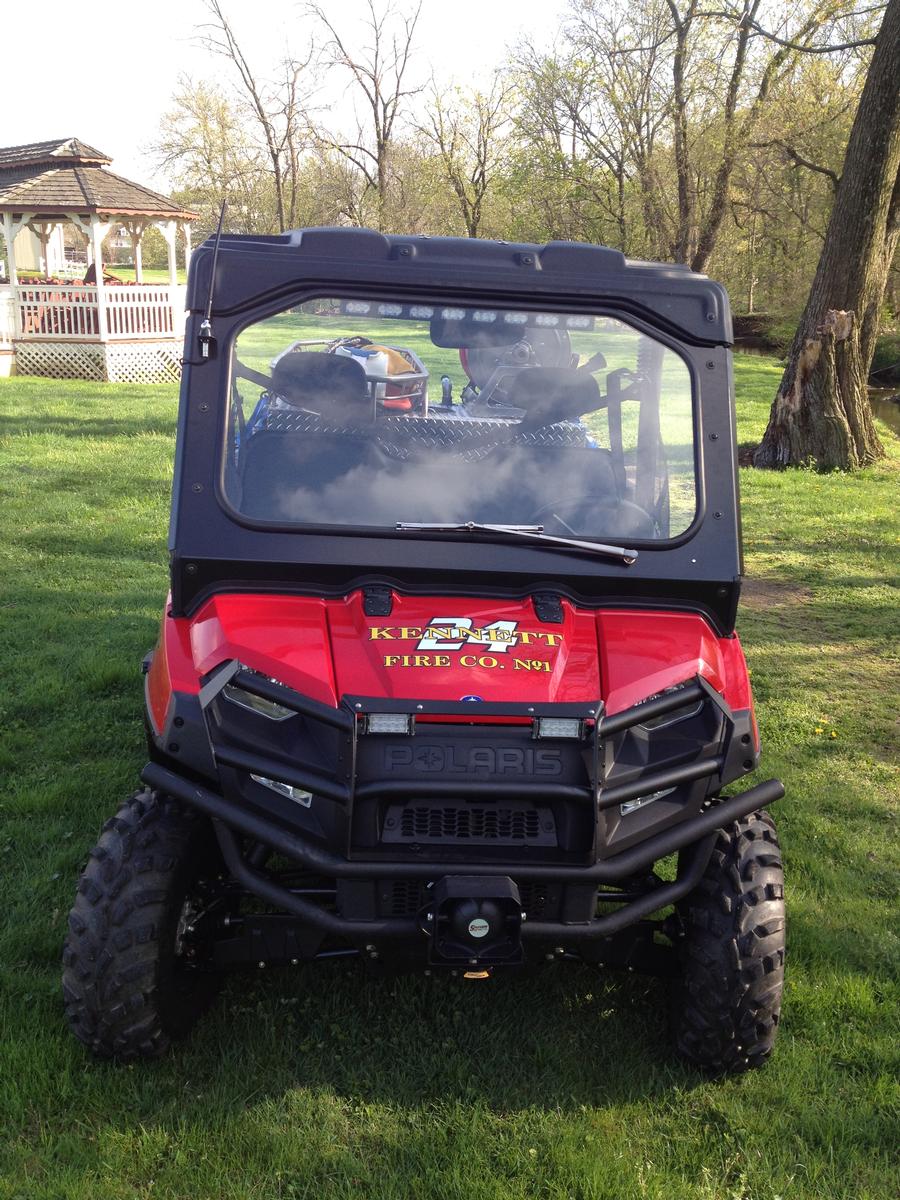

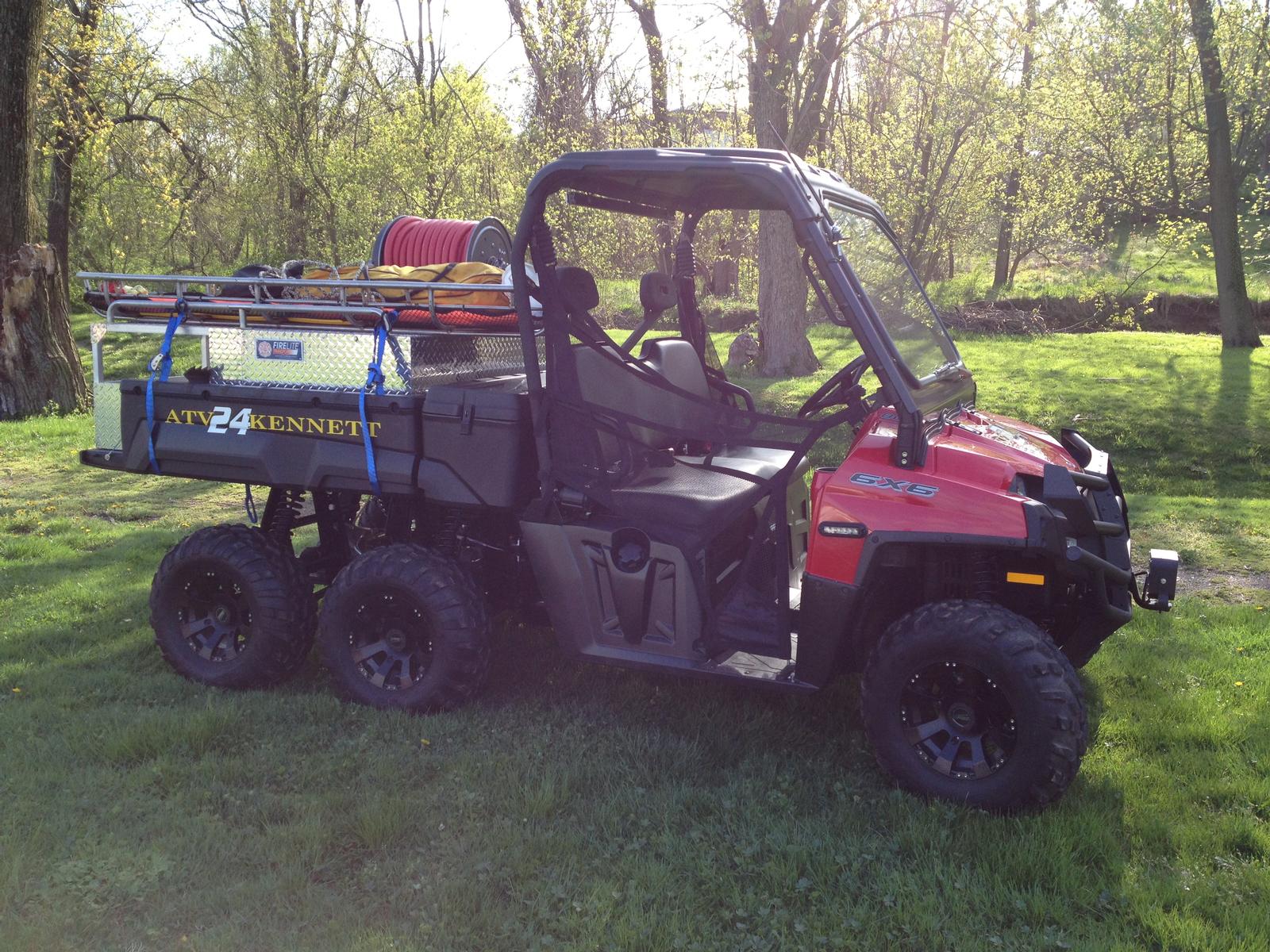

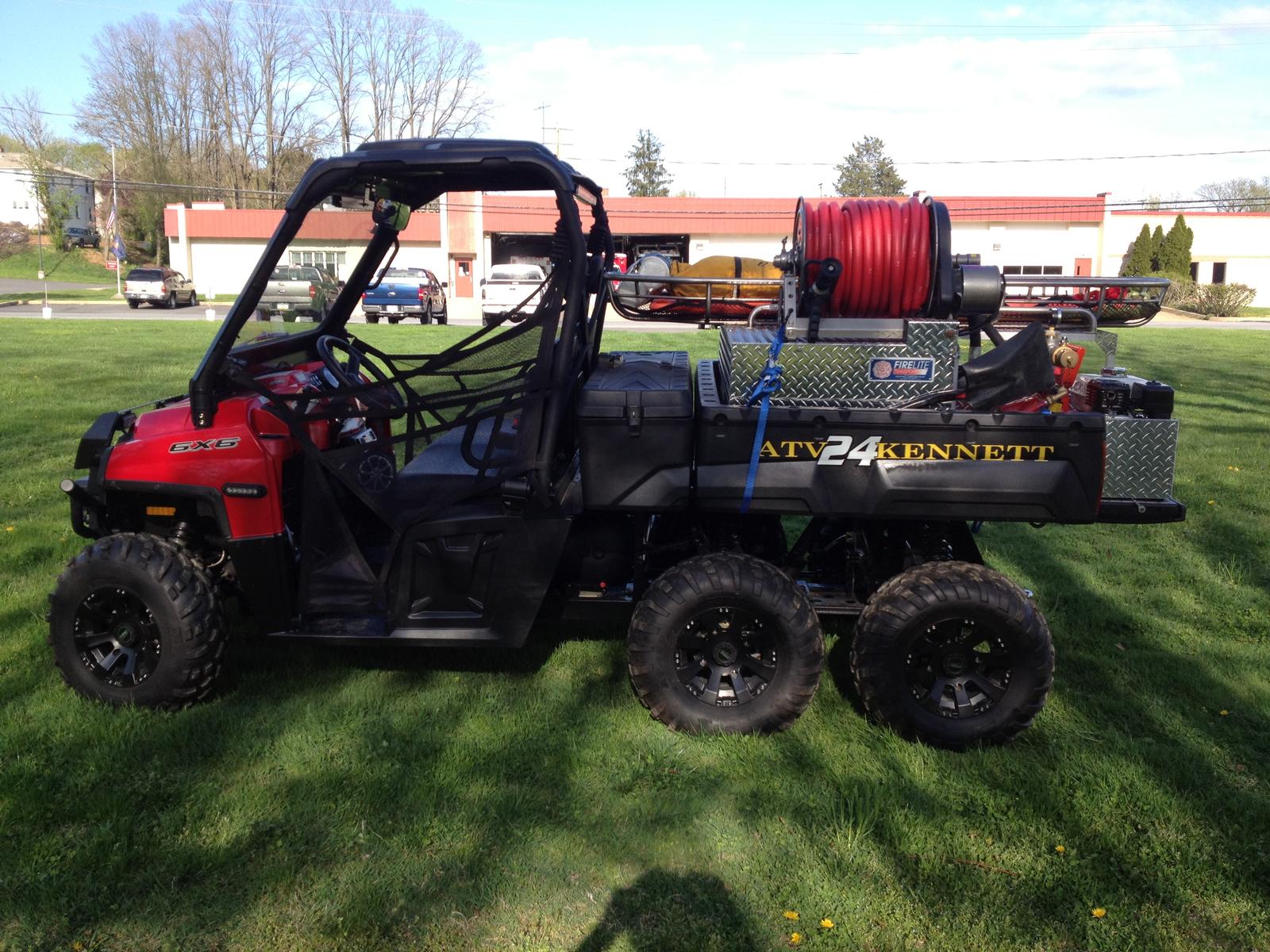

ATV 24 is a 2012 Polaris 6X6 Ranger with 40 Hp 4 Stroke 800 Twin.  It is capable of towing 2,000 lbs. from the hitch and has a 1,250 lbs. rear dump box capacity.  ATV 24 is towable by our small vehicles with an appropriately sized trailer housed here at Station 24.

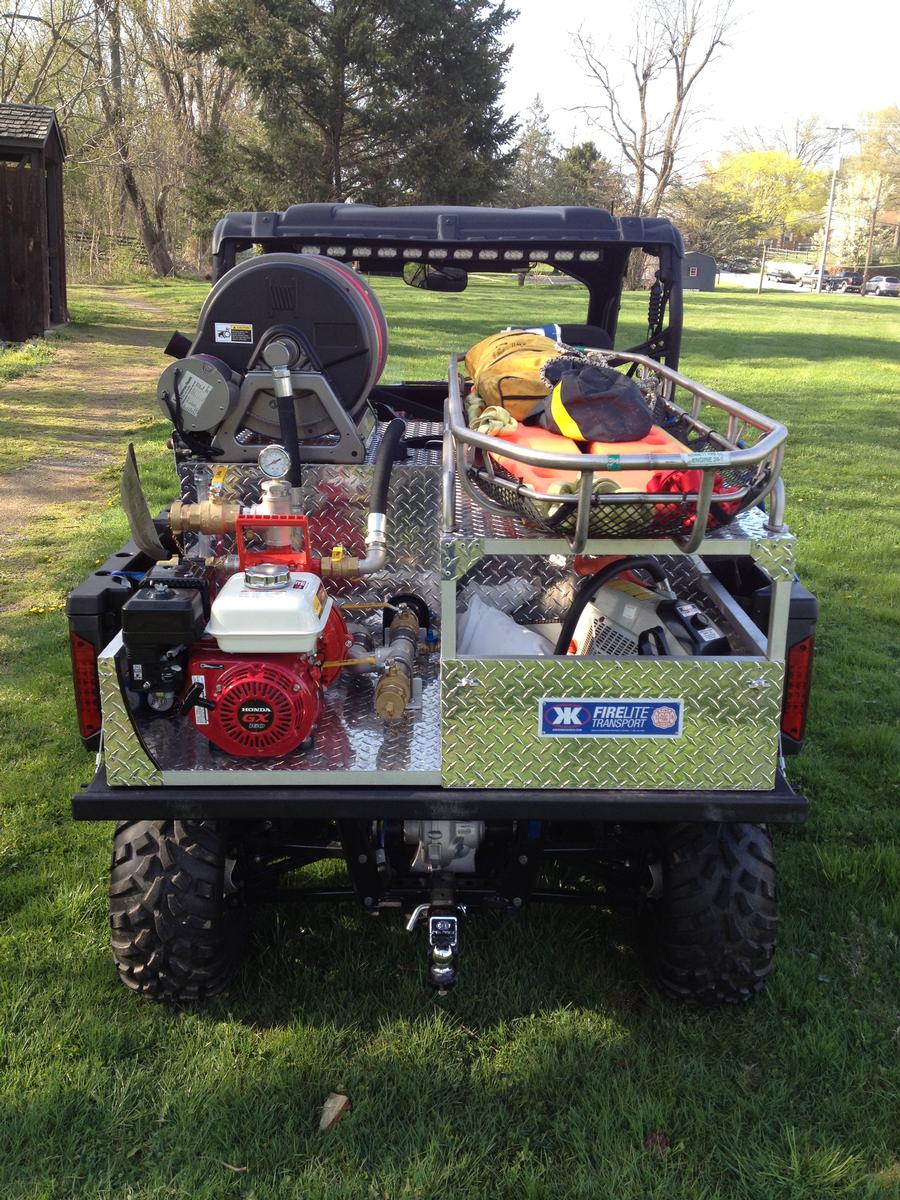

Brush Skid:  Kimtek Corporation FireLite Transport Skid

• All aluminum construction with bright aluminum diamond plate and aluminum tubing sub-frame
• Hose bed storage section for hard suction, forestry hose, nozzles etc.
• Unit comes complete with the Darley-Davey® Two Stage High Pressure Pump: Twin impeller, gas driven pump powered by an available manual recoil 5.5 HP, 9 HP or 13 HP electric start Honda engine able to self-prime to 19'; Nitrile rubber seal & casing "O" rings; Low oil protection; One Year Pump Warranty; Two Year Engine Warranty
• Comes with 1 gated 1-1/2" discharge; 1 gated 1" discharge*; 1 gated 1" pump to tank refill; 1 gated 1" to booster reel; 1 gated 1-1/2" auxiliary suction; 1 gated 1-1/2" tank to pump
• Integrated 85 gallon poly water tank
• Pre-connected F4000 Series Hannay Reel® Manual Crank with 100’ of ¾" or 50' of 1" Booster Hose
• Water tank sight gauge
• 2- 48" x 1" stainless steel grab rails at rescue area for mounting a stokes basket or long board
• Adapter to refill water back packs in the field without starting pump
• Tailgate at rear of hose storage area

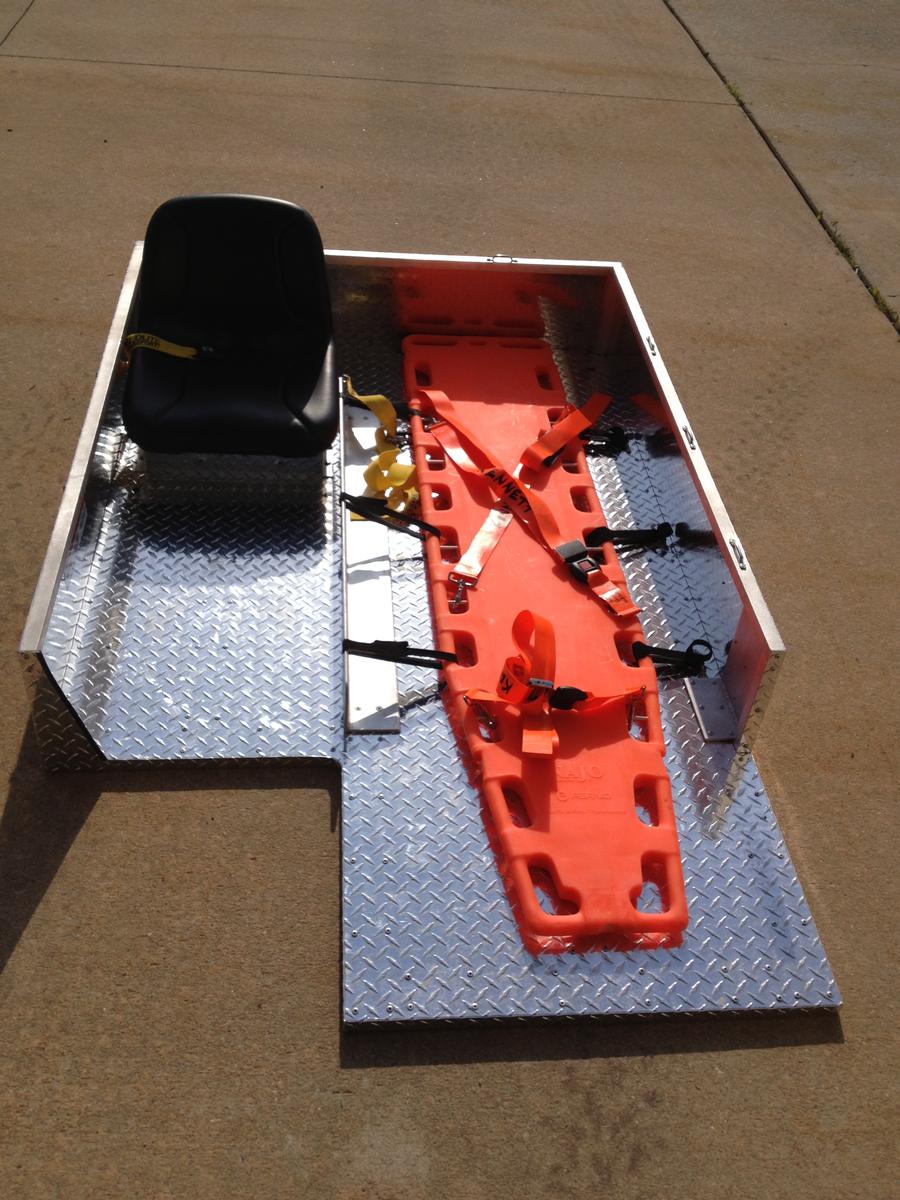

Medical Skid: Kimtek Corporation MedLite Transport Skid

• All Aluminum Skid Chassis with Bright Diamondplate
• Rescue Area to Secure Long Board or Stokes Basket for Patient Transport
• Quick Disconnect Mounting System
• Fixed Seat with Seat Belt
